Model No.
|
HT-T-M1000-12
|
|
|
INVERTER
|
||
|
DC input volt
|
12V
|
|
|
Volt range
|
10-16VDC
|
|
|
Surge power
|
2000W
|
|
|
Continuous power
|
1000W
|
|
|
Wave form
|
Modified Sine Wave
|
|
|
AC voltage
|
100V / 120V / 230V
|
|
|
Frequency
|
50/60Hz±3%
|
|
|
AC Regulation
|
±8%(100V:±10%)
|
|
|
No load current draw
|
0.6A
|
|
|
Bat. Low alarm
|
10.5±0.5V
|
|
|
Bat. Low shutdown
|
10±0.5V
|
|
|
Over voltage
|
16±0.5V
|
|
|
Bat. Polarity Reverse
|
Fuse burn out
|
|
|
Over load
|
Re-start 1 time, shutdown if failed
|
|
|
Bypass function
|
Yes
|
|
|
Low AC input volt transfer to inverter mode.
|
90Vac+/-5% or 180Vac+/-5%
|
|
|
Low AC input volt recovery to AC mode.
|
95Vac+/-5% or 190Vac+/-5%
|
|
|
Connector
|
Input AC Plug
|
Yes
|
|
Output AC Receptacle
|
Yes
|
|
|
CHARGER
|
||
|
Output current
|
10A
|
|
|
AC input volt
|
120V (90-135V) / 230V (180-265V)
|
|
|
Charging type
|
multistage
|
|
|
Bulk stage
|
14.5±0.5V,10A
|
|
|
Absorption stage
|
14.5±0.5V, 10A-1A (12V)
|
|
|
Float stage
|
13.6±0.5V, min, 0.5A (12V)
|
|
|
Frequency
|
45-65Hz
|
|
|
Recommended Battery Type
|
Lead acid
|
|
|
Recommended Battery Size
|
40-160AH
|
|
|
PROTECTION
|
||
|
Over load protection
|
Yes
|
|
|
Over temp protection
|
Yes
|
|
|
Inverter input reverse protection
|
Fuse blow
|
|
|
Charger output reverse protection
|
Fuse blow
|
|
|
Inverter output short circuit protection
|
Shut-off
|
|
|
Over temperture
|
55?±5?
|
|
|
ENVIRONMENT
|
||
|
Working temp.
|
-15?~45?
|
|
|
Storage temp.
|
-25?~70?
|
|
|
Working humidity
|
20%~90% RH non-condensing
|
|
|
Storage temp., Humidity
|
-30?~+70?, 10~95% RH
|
|
|
Temp. coefficient
|
±0.05%? (0~55?)
|
|
|
OTHERS
|
||
|
Dimension (LxWxH)
|
403x340x455 mm
|
|
|
Net weight
|
9.0 kgs
|
|
|
Optional
|
||
|
EXTRA FUNCTION
|
||
|
Model no.
|
HT-T-M1000SC-12
|
|
|
Solar charger controller
|
20A(PWM)
|
|
|
Net weight
|
9.2 kgs
|
|

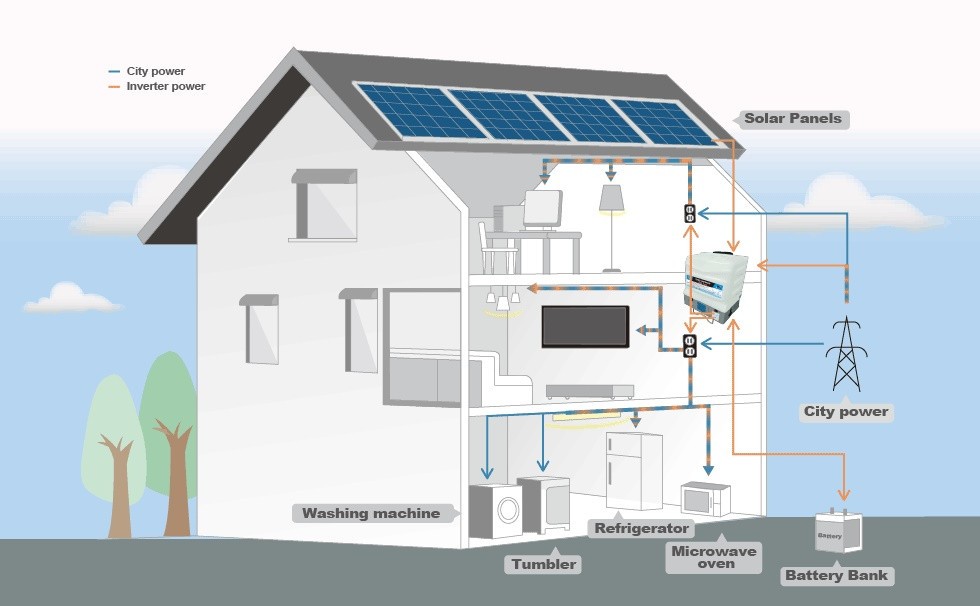

TOPOLOGI INSTALASI
